Description
Take Care Your Baby, she/he need your all attention.

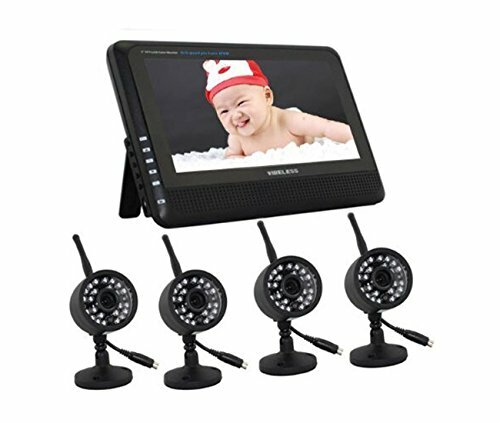

This is a 4 channel digital wireless and DVR systems, easy to install, no wiring, all-digital wireless, no interference, no loss of privacy.
Equipped with 7 “LCD display and built-in video recorder, bringing up to 32GB TF card(not included). Supports four cameras / 24 hours / 7 days uninterrupted coverage recording,
has a variety of display modes: manual display, circular display, 4-screen display. At the same time it has 15 meters night vision range.
Video Quality: 4CH VGA 10fps, 1CH VGA 30fps; while the product supports large-screen video output.
Feature:
Receiver parameters:
1) Receiving Frequency: 2.400 ~ 2.480 universal digital frequency
2) Receiver sensitivity:-90dBm
3) LCD Size: 7 inches digital screen
4) Resolution: 800 * 3 (RGB) * 480
5) Video output: PAL and NTSC
6) Video Format: jpeg (single-screen status record: 640 * 480 @ 30fps 4 screen state record: 320 * 240 @ 15fps)
7) SNR: 46dB
8) Temperature display range: 0 ℃ ~ 50 ℃
9) Reception open distance: 300 mètres (1000 pieds)
10) Power Adapter: DC5/1000MA
Camera parameters:
1) Transmitting frequency: 2.400GHz ~ 2.480GHz
2) Universal digital frequency transmission power: 17dBm
3) Imaging Device: 1/4 “CMOS image sensor
4) Effective pixels: PLA628 (H) x 582 (V) NTSC510 (H) x 492 (V)
5) Horizontal resolution: 380TV Line
6) Transmission signal: image, sound
7) Minimum illumination: 0Lux (IR ON) / 5LUX (IR OFF)
8) Open transmission distance: 300 mètres (1000 pieds)
Paquet:
Receiver * 1
Camera * 4
Puissance * 5
Manual * 1
A / V cable * 1
Suction cup holder * 1
